Evo Penta - High-precision 5-axis grinding center for the machining of indexable inserts with complex geometries

Evo_Penta_im
icon

Compatibility

● Standardized, compatible Agathon tools
● Consistent Agathon operating philosophy and software
● Unique, domain-specific programming language for indexable inserts

icon

Handling

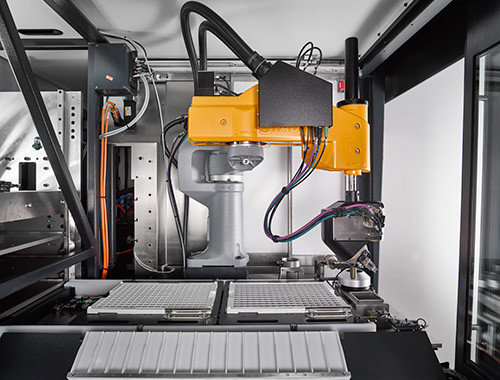

● Agile SCARA Handling
● Two pallets in the work area for separation of blank and finished parts

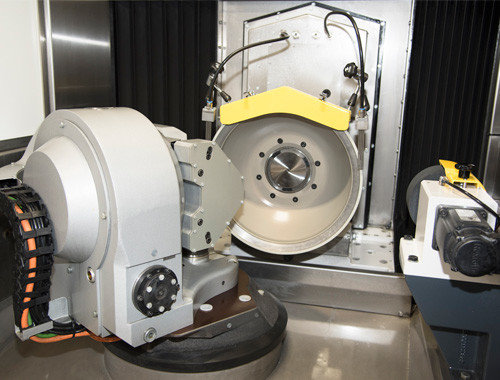

● Grinding area separated from handling area

icon

Optimized Drives

● Extended travel ranges and swivel angles for the production of complex geometries without re-clamping
● Proven Penta Workpiece spindle head
● Direct drives with optimized performance for the X, Y and C axes
● Internal and external dressing devices can be combined
● Grinding wheel diameter 400 mm

icon

Connectivity

Extensive possibilities for Connectivity and Data Management.

Download Flyer

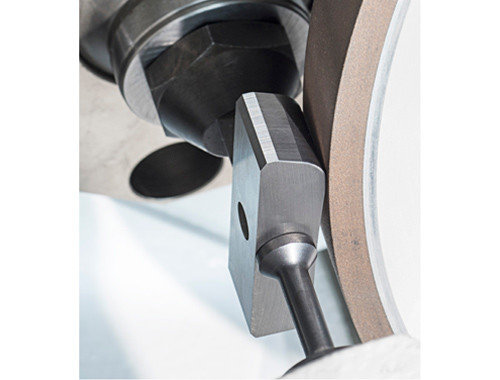

Our latest application on the Evo Penta

HubSpot Video

The Evo Penta concept

Evo Penta - basic machine
  • Proven design with good accessibility
  • Extended travel ranges and swivel angles for the production of complex geometries without re-clamping
  • Proven Penta Workpiece spindle head
  • Direct drives with optimized performance for the X, Y and C axes
  • Internal and external dressing devices can be combined
  • Grinding wheel diameter 400 mm
  • Grinding area separated from handling area
  • Two trays in the work area for separation of blank and finished parts
Technical data
Number of pallets max. 16
Grinding cup Ø 400mm
Dimensions (L x W x H) 3.06m x 2.10m x 2.22m (with lamp 2.60m)
Weight 6500 kg
Swiveling range of C axis -140° bis +140°
OD | IC max. 50mm | min. 3.96mm
Workpiece – Clamping dist. 29mm
Materials Carbide, Cermet, Ceramics, CBN, PCD
Ease of use
  • Workpiece spindle head close to machine front for better access
  • Consistent Agathon operating philosophy and software
  • Unique, domain-specific programming language for indexable inserts
  • Simple Re-teach
  • Proven, perfectly integrated automation
  • Comprehensive training program for programming, operation and maintenance
Selected options
  • Electro-erosion conditioning process (PowerGrind)
  • Robust U-axis for in-process cleaning, sharpening and profiling
  • 2D force measurement system for normal and tangential forces for the process definition, optimization and control
  • Extensive possibilities for Connectivity and Data Management

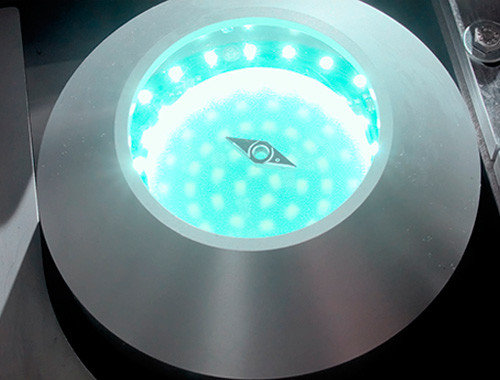

  • Vision system for parts alignment and spot recognition
  • 3D measuring probe: Additional X-Y-Z measuring probe for the measurement of workpiece properties in clamped condition

The outstanding advantages of Evo Penta

Low cost per workpiece
  • Shorter grinding times thanks to very high material removal rates
  • Short transfers due to agile handling and internal dressing
  • Complete machining without re-clamping
  • Standardized, compatible Agathon tools
  • Fast product change due to offline programming and graphic simulation
  • Up to 50% cycle time reduction with PowerGrind
  • Low-maintenance components
Flexibility (materials, process, geometries)
  • ended swivel angles and travel ranges for significantly more geometries
  • ands on both sides without re-clamping
  • xis for wide range of workpieces and geometries
  • e combination of various dressing methods
  • gest possible range of applications from IC 3.96 mm to OD 50mm
  • ted for all common indexable insert materials
Maximum availability
  • High autonomy with storage for up to 16 trays
  • State-of-the-art, low-maintenance drives
  • Short changeover/set-up times
  • Designed and manufactured in Switzerland
  • Fast, competent and efficient teleservice and on-site field service
