Compatible with all options offered for the Evo platform
Outstanding application range even with complex geometries
Grinding from three sides without reclamping on circumference, radius and with chipbreakers

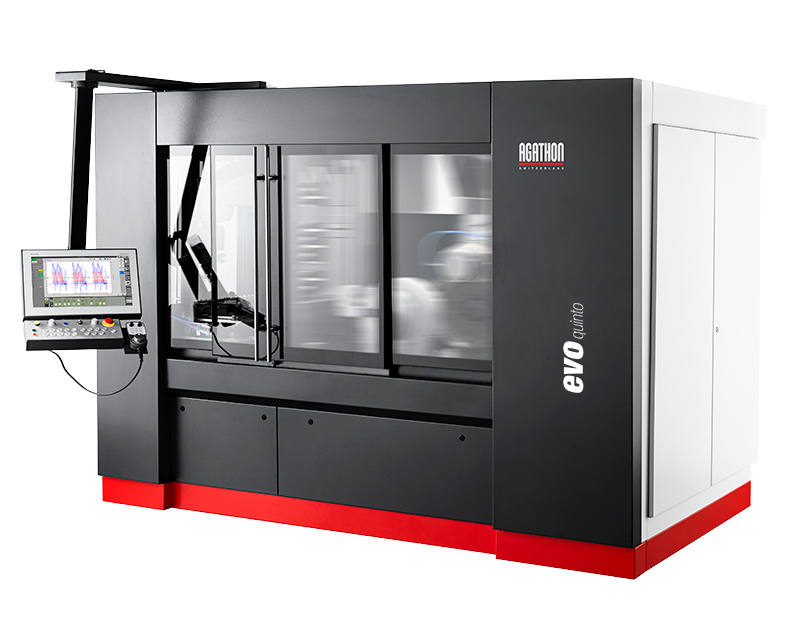

Evo Quinto – 5-axis grinding center for almost unlimited flexibility


Operation and programming
- All Agathon grinding machines use the same tools and are identical in operation and programming
- Low training for experienced and unexperienced Agathon users
- Fast and secure programming

Automation
- Agile SCARA automation
- Two pallets in the work area for the separation of blank and finished parts
- Space for up to 16 pallets for unique autonomy

Axes and drives
- Swiveling range >280° on A-axis. This means incredible flexibility
- Tangential grinding on both sides of the grinding rim
- Compatible with all Agathon clamping systems
- Larger swiveling range also on the C-axis compared to the Evo Penta

Control and Connectivity
- State-of-the-art control technology
- SmartConnectivity and data management
Evo Quinto – unmatched advantages
Unbelievably flexible and productive
- The possibilities of the developer are practically limited only by his imagination
- Parts with complex geometries can be ground from three sides without reclamping on circumference, radius and with chipbreakers
- Tangential grinding on both sides of the grinding rim. This allows two-sided grinding of chamfers without reclamping
- No reclamping means high precision, productivity and autonomy
- The C-axis also has a larger swiveling range compared to the Evo Penta
- Larger parts up to an OD of 80 mm can be easily processed
- High productivity through perfectly balanced, high mechanical stiffness
- As with all Agathon grinding centers, a high-precision thickness measurement and a fast IC measuring probe are already integrated
Complete solution package in Agathon touch & feel
- Compatible with all existing hardware and software options for the Evo platform
- Compatible with all existing Agathon tools for grinding machines
- Low training for first-time and experienced Agathon users
- Users of third-party machines will experience the product change as easy and surprisingly positive
- The Evo-Quinto can be used quickly in all its functionality
Programming is tailored to the operator
- Even demanding applications can be programmed quickly and, above all, safely
- High degrees of freedom in programming for experienced users
- Efficient programming for less experienced users
- Reduced effort in managing existing prgrams
