Evo Penta
High-precision 5-axis grinding center for the machining of indexable inserts with complex geometries
Evo Combi
High-precision 4-axis grinding center for the machining of indexable inserts on the periphery and two K-Lands in a single clamping.
Dom Plus
High-precision 4-axis grinding center for the machining of indexable inserts on the periphery with two K-Lands through re-clamping.
Leo Peri
High-precision 4-axis grinding center for machining the periphery of indexable inserts. Support for 4 up to 6 pallets, Compact, fully enclosed grinding area.
Laser Neo
Laser processing machine for pre-machining (near-to-net-shape) superhard materials (pCBN, PCD). 100x higher material removal rate compared to grinding. For subsequent finishing.

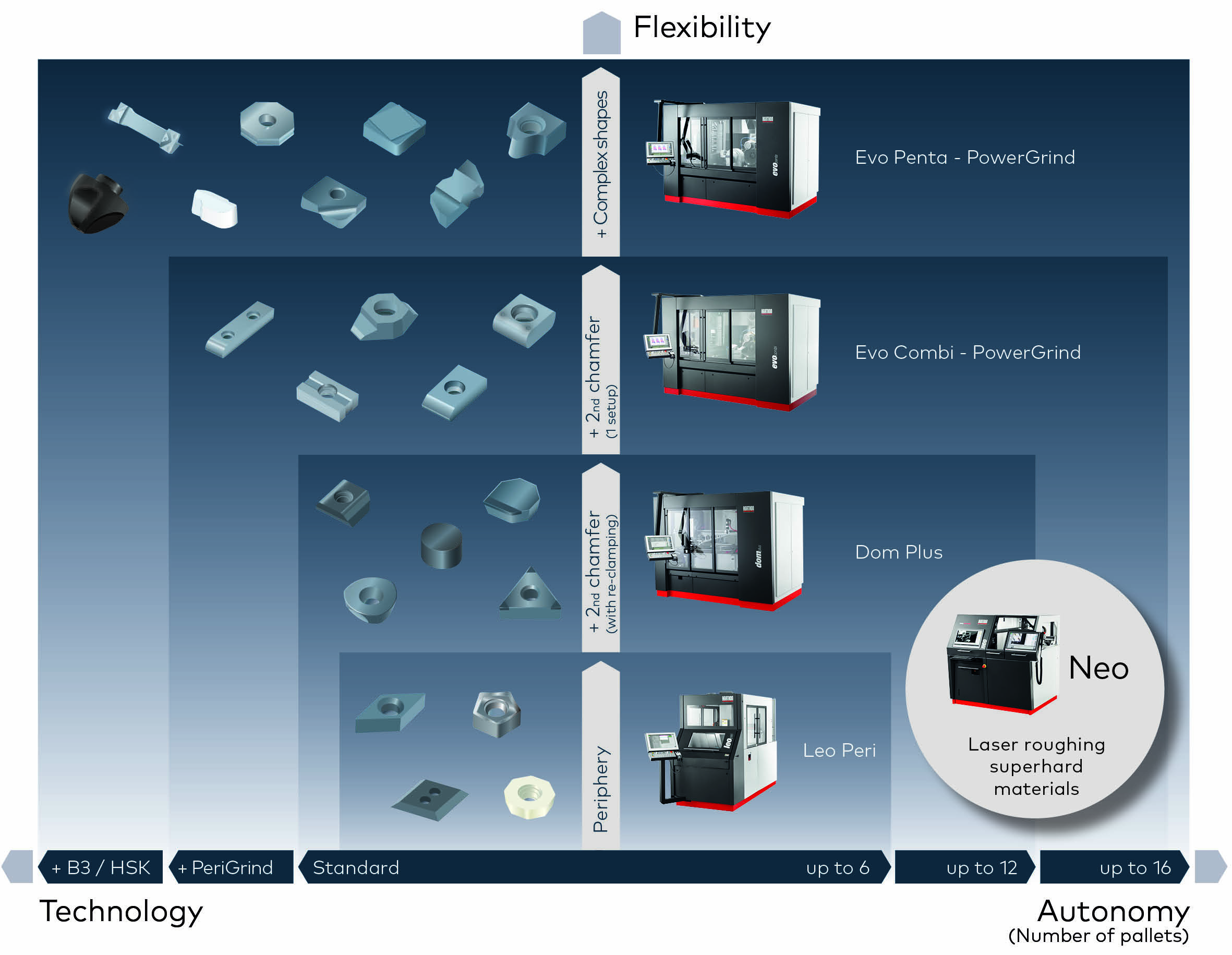

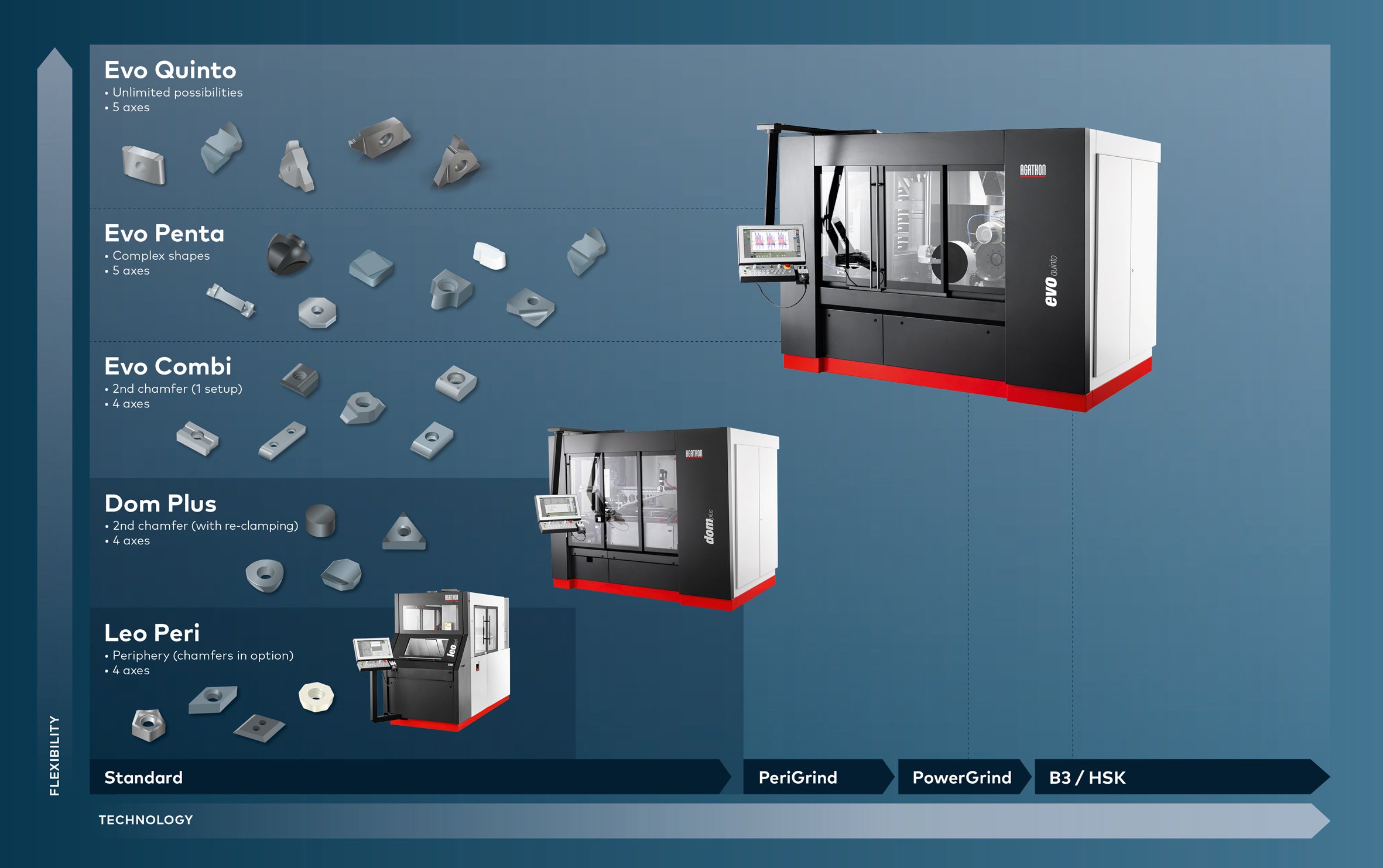

Our machines at a glance
Leo, Dom and Evo are characterized by a deliberate balance of proven and innovative. All machines are developed and manufactured in Bellach near Solothurn.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Leo Peri | Dom Plus | Evo Combi | Evo Penta | Evo Quinto | |
| Materials | Carbide, Cermet, Ceramics, CBN, PCD | Carbide, Cermet, Ceramics, CBN, PCD | Carbide, Cermet, Ceramics, CBN, PCD | Carbide, Cermet, Ceramics, CBN, PCD | Carbide, Cermet, Ceramics, CBN, PCD |
| IC min | 3.96mm | 3.96mm | 3.96mm | 3.96mm | 3.96mm |
| OD max | 35mm | 60mm | 100mm (max 120mm) | 50mm | 81mm |
| Workpiece – Clamping distance | 23.5mm | 23.5mm | 28.5mm | 29mm | 28 mm | 26 mm (depending on the clamping part) |
| Flexibility | Periphery (chamfer grinding optional) | Periphery, with two K-Lands through re-clamping | Periphery and 2 K-Lands in a single clamping | Complex geometries | Maximum. For highly complex geometries (grooving inserts, chip breakers, orthogonal grinding direction for PCD etc.) |
| Grinding cup Ø | 250mm / 280mm | 350mm | 400mm | 400mm | 400mm |
| Axis | 4 | 4 | 4 | 5 | 5 |
| Clamping systems | B1 | B1 | B1 | B1 und B3 | B1, B3, HSK |
| Swiveling range of C axis | -45° (-75°) to +36° | -90° to +45° | -140° to +140° | -140° to +140° | –140° to +140° |
| Y-Axis distance | -17mm to +69mm | -100mm to +53mm | -266 to +352mm | -266 to +352mm | –266 to +352 mm |
| X-Axis distance | -23mm to +36mm | -45mm to +100mm | -63mm to +223mm | -63mm to +223mm | -63mm to +223mm |
| B-Axis speed | 300°/s | 300°/s | 720°/s | 300°/s | 300°/s |
| Clamping force | 500-8800N | 500-8800N | 500-8500N | 500-8500N | 500-8500N |
| Number of pallets | Max 6 | Max 12 | Max 16 | Max 16 | Max 16 |
| Dressing options | Intern: DirectCupDress | Intern: DirectCupDress Or extern: CupDress, ExternPeriDress |
Intern: DirectCupDress, PowerGrind And extern: CupDress, ExternPeriDress, ExternCombiDress |
Intern: DirectCupDress, PowerGrind And extern: CupDress, ExternPeriDress, ExternCombiDress |
Intern: DirectCupDress, PowerGrind And extern: CupDress, ExternPeriDress, ExternCombiDress |
| Selected options | Force Measurement 3D Simulation AGP-Iso Datapool I4.0 Chamfer grinding |
Force Measurement 3D Simulation AGP-Iso Datapool I4.0 |
Force Measurement 3D Simulation AGP-Iso Datapool I4.0 PowerGrind PeriGrind |
Force Measurement 3D Simulation AGP-Iso Datapool I4.0 PowerGrind PeriGrind |
Force measurement 3D simulation 3D measuring probe AGP-Iso Datapool SmartConnectivity PowerGrind PeriGrind |
| Dimensions (W x D x H) |
1290mm x 2980mm x 2140mm | 2750mm x 2100mm x 2290mm | 3060mm x 2100mm x 2290mm | 3060mm x 2100mm x 2290mm | 3060 mm x 2100 mm x 2290 mm |
| Weight | 3099kg | 5350kg | 5800kg | 5800kg | 5800kg |
